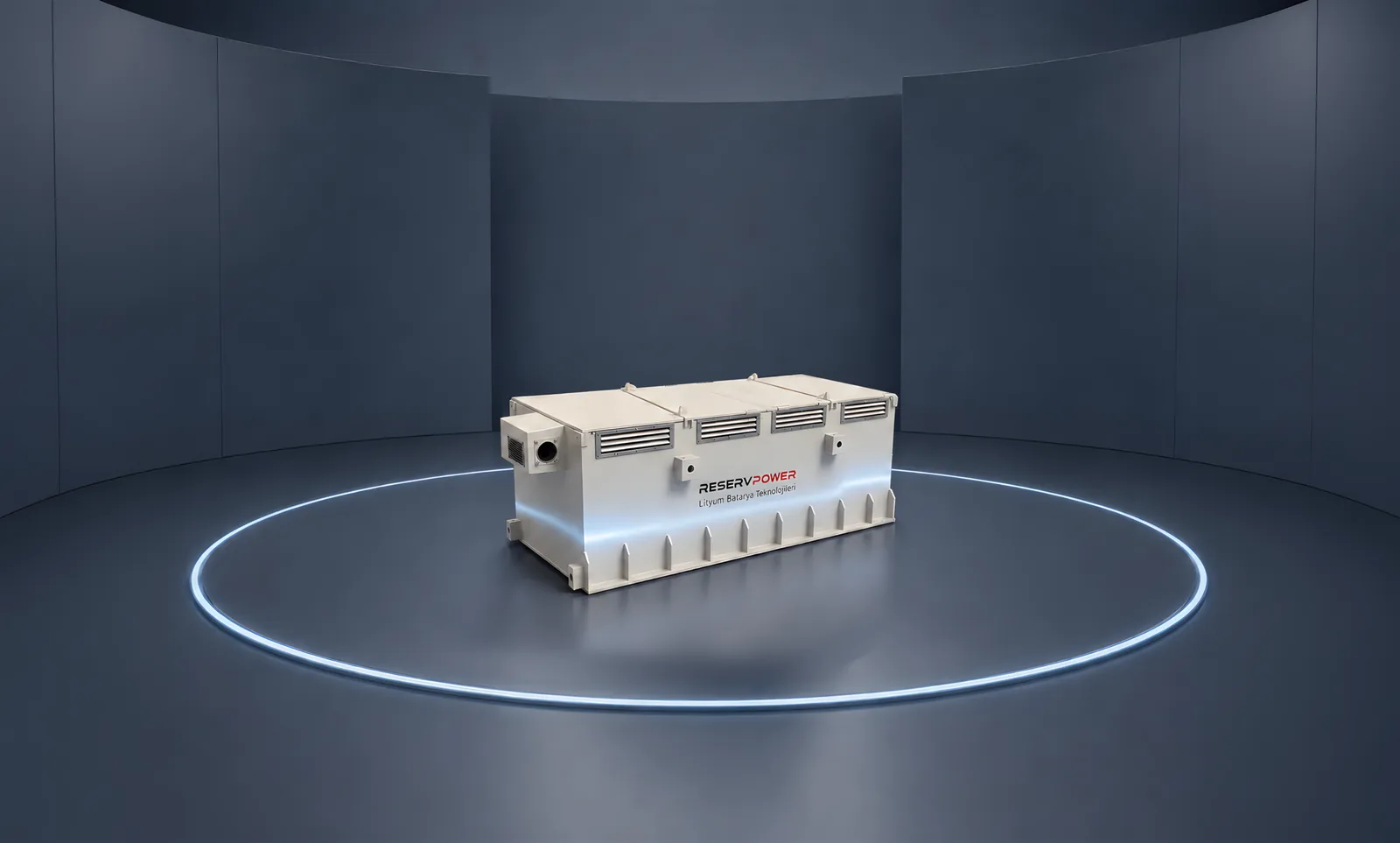

RP Motive 80-620
A high-current, high-capacity pack for port and heavy-industry forklifts.
Voltage
76.8 V
Capacity
620 Ah
Cycles
6000
Live Monitoring
This product ships with a smart BMS: cell voltages, temperature and state of charge are visible in real time from the web panel and the mobile app.
Overview
Forklifts lifting up to 8 tonnes draw very high current in short bursts when climbing ramps. The RP Motive 80-620 supplies peaks up to 1200 A and holds lift performance without voltage sag. Its modular construction allows module-level service in the field: a faulty module is replaced without taking the whole battery out of commission.
Technical specifications
| Nominal voltage | 76.8 V |
|---|---|
| Capacity | 620 Ah / 47.6 kWh |
| Continuous discharge | 600 A |
| Peak discharge | 1200 A / 30 sn |
| Charge current | 310 A |
| Dimensions (L×W×H) | 1240 × 855 × 784 mm |
| Weight | 780 kg |
| Operating temperature | -20 °C … +55 °C |
| Ingress protection | IP54 |
| BMS | Master-slave, modül bazlı / module level |
| Communication | CANopen · Modbus RTU |
| Cell chemistry | LiFePO₄ |
| Warranty | 10 yıl / years |
Key features
Long service life
6000+ cycles: years of operation without a replacement bill.
High energy density
Substantially more usable energy per litre than lead acid.
Smart BMS
Cell balancing, layered protection and CAN data output as standard.
Harsh environments
Stable performance under vibration, salt air and wide temperature swings.
